LQ-TT Variable frequency activated carbon wheel (drum type)
LQ-TT Variable frequency activated carbon wheel (drum type)
LQ-TT Variable frequency activated carbon wheel (drum type)
LQ-TT Variable frequency activated carbon wheel (drum type)
LQ-TT Variable frequency activated carbon wheel (drum type)
LQ-TT Variable frequency activated carbon wheel (drum type)
LQ-TT Variable frequency activated carbon wheel (drum type)
LQ-TT Variable frequency activated carbon wheel (drum type)
LQ-TT Variable frequency activated carbon wheel (drum type)
LQ-TT Variable frequency activated carbon wheel (drum type)

LQ-TT Variable frequency activated carbon wheel (drum type)

Overview Of Inverter Type Activated Carbon Runner Lv Quan's activated carbon concentrator rotor uses pure coal activated carbon with a carbon content of 98.5%, which has the characteristics of higher adsorption efficiency and higher adsorption speed. It is processed by special technology, which makes the desorption stage withstand higher temperature and more complete desorption. Compared with the traditional fixed box activated carbon adsorption device, it has the advantages of stronger adsorption capacity, more compact structure and longer service life of activated carbon.
Get A Quote Download
PREV：LQ-YFCO Integrated organic waste gas treatment equipment systemNEXT：LQ-TF Zeolite Rotary Concentrator (Cylindrical/Disc Type)
  • Parameter
  • Contact Us

  • Applicable Industries And Scope

    Applicable VOCs

    Benzene, toluene, xylene, ethanol, isopropanol, butanol, MEK, MlBK, NP, esters, butyl acetate, and various solvent systems.

    Application industries

    		 painting, printing, pharmaceuticals, semiconductor manufacturing, etc.

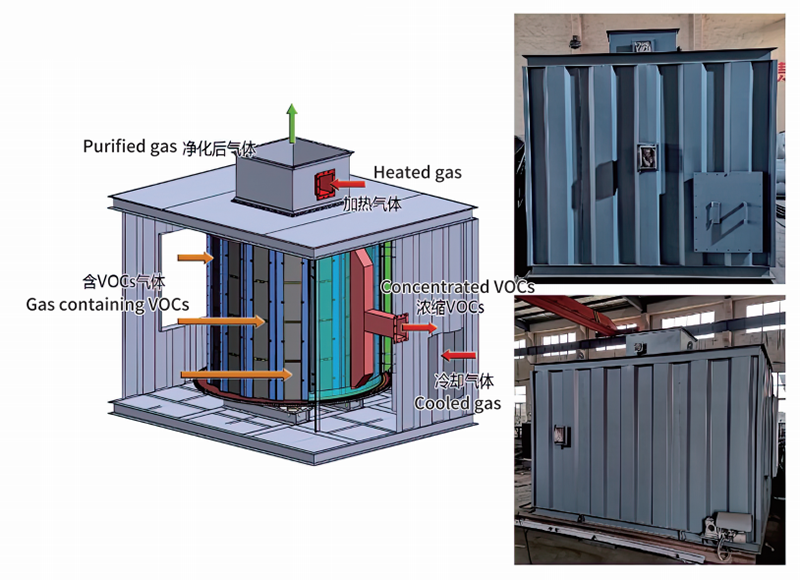

    Product Structure

    Product Number

    LQ TEC

    2000

    		 16 10

    Lv Quan company products

    		 Cartridge type activated carbon concentration rotor

    Handling air capacity

    1000

    2000

    3000

    4000

    5000

    Number of Rotor Sectors

    16

    20

    24

    28

    36

    Concentration ratio

    5

    8

    10

    Example: LQ-TFC-20001610

    Interpretation: Lv Quan's drum-type zeolite concentration turntable processes an air volume of 10000m³/h, has 16 processing sections, and a concentration ratio of 10 times.

    Partial Selection

    Model

    Handling air capacity (Nm³/h)

    L(mm)

    W(mm)

    H(mm)

    Weight(T)

    LQ-TTC-10001610

    10000

    3200

    2500

    2150

    3.6

    LQ-TTC-15002410

    15000

    3750

    2500

    2150

    5.1

    LQ-TTC-20002410

    20000

    3750

    3050

    2550

    5.8

    LQ-TTC-25002410

    25000

    3750

    3050

    2950

    6.5

    LQ-TTC-30002810

    30000

    3950

    3300

    2950

    7.5

    LQ-TTC-40002810

    40000

    3950

    3300

    3750

    9.1

    LQ-TTC-50003610

    50000

    4550

    3850

    3750

    11.6



Related Products

About Us
Lv quan Environmental Protection Engineering Technology Co., Ltd.

Yangzhou Lv Quan Environmental Protection Engineering Technology Co., Ltd. is strategically located in the "Northern Gateway of Jiangsu"—Gaoyou City, Yangzhou Province. Our company is a joint-stock enterprise established by a team of professionals with over 30 years of experience in the design and manufacturing of VOCs equipment. With a registered capital of 22 million yuan, we have nearly 40 million yuan in fixed assets and a total asset value approaching 60 million yuan. Our production facilities span an area of 9,800 square meters, equipped with over 200 sets of various mechanical processing equipment. We employ a dedicated workforce of 120 staff members, and our annual production capacity is valued at 100 million yuan.
We are a professional LQ-TT Variable frequency activated carbon wheel (drum type) Manufacturers, The company has always focused on the environmental protection design and manufacturing of VOCs organic waste gas treatment such as "adsorption, incineration, recovery, pretreatment". It has been committed to the research, design, manufacturing, installation, and after-sales service of organic waste gas treatment equipment for more than a decade. The company has Jiangsu Province environmental pollution design and governance double-grade qualifications, Jiangsu high-tech enterprises, ecological protection professional third-level contracting qualifications, and has successfully passed the ISO9001, ISO14001 system certification.
As a professional LQ-TT Variable frequency activated carbon wheel (drum type) Suppliers, Our company currently holds thirteen utility certificates and two high-tech invention certificates, and we have been designated as a member unit of the Jiangsu Environmental Protection Industry Association. Our product portfolio spans a wide range of industries, including vehicle manufacturing, coil coating, petrochemicals, pharmaceuticals, electronics, machinery, printing, and furniture-building materials. In the field of organic waste gas treatment equipment, the Lv Quan brand stands out and enjoys a rapidly growing market share.
Adhering to the principles of "focus, technology, quality, service, and satisfaction," Lv Quan has absorbed and integrated advanced foreign technologies in the manufacturing of adsorption and incineration technologies. We have summarized and enhanced the safety, stability, and reliability of our products, achieving a level of quality that is on par with domestic peers and gradually replacing the need for imported equipment.

Certificate Of Honor
  • New Small and Medium sized Enterprise Certificate
  • Account Opening License
  • High tech Enterprise Certificate
  • Safety Production License
  • Business License
  • Certificate
  • Certificate
  • Certificate
News
Industry Knowledge Extension

Yangzhou Lv Quan Environmental Protection Engineering Technology Co., Ltd. is a joint-stock enterprise focusing on the research and development, design, manufacturing and after-sales service of VOCs (volatile organic compounds) treatment equipment. It is located in Gaoyou City, Yangzhou City, Jiangsu Province. The company has more than 30 years of industry experience, with a registered capital of 22 million yuan, total assets of nearly 60 million yuan, and an annual production capacity of 100 million yuan. Yangzhou Lv Quan Environmental Protection Engineering Technology Co., Ltd. has accumulated rich experience in the fields of adsorption, incineration, recovery and pretreatment, and has passed ISO9001 and ISO14001 system certification. It has dual-level qualifications for environmental pollution design and treatment in Jiangsu Province and a number of patented technologies. Its products are widely used in automobile manufacturing, petrochemicals, medicine, electronics and other industries, and its market share is rapidly increasing.
The LQ-TT Variable frequency activated carbon wheel (drum type) of Yangzhou Lv Quan Environmental Protection Engineering Technology Co., Ltd. is one of its core products. It uses pure coal-based activated carbon with a carbon content of up to 98.5%, and has excellent adsorption performance and rapid adsorption capacity. The product is processed through a special process to allow the desorption stage to withstand higher temperatures, thereby achieving a more thorough desorption effect. Compared with the traditional fixed box activated carbon adsorption device, the LQ-TT Variable frequency activated carbon wheel (drum type) has the following significant advantages: stronger adsorption capacity, more compact structure, and longer service life of activated carbon. The product also combines variable frequency technology, which can adjust the operating parameters according to actual needs, further improving efficiency and energy saving effects.

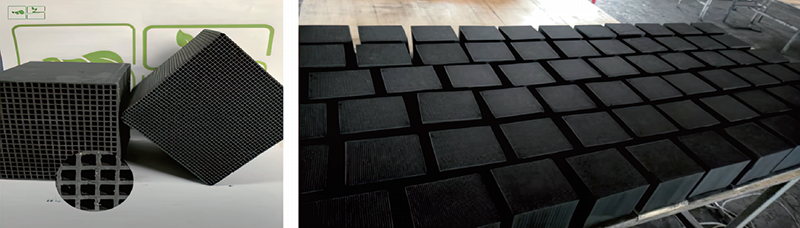

The LQ-TT Variable frequency activated carbon wheel (drum type) is suitable for treating large air volume and low concentration organic waste gas. It can concentrate the waste gas to a high concentration and enter the subsequent treatment system, thereby reducing equipment investment costs and operating costs. Its honeycomb structure design improves the adsorption efficiency and is also convenient for modular replacement and maintenance. The product can effectively avoid the damage of high temperature exhaust gas to activated carbon during high temperature desorption, extend service life and reduce secondary pollution.
Yangzhou Lv Quan Environmental Protection Engineering Technology Co., Ltd. stands out in the field of VOCs treatment with its deep technical accumulation and innovative product design. As its representative product, the LQ-TT Variable frequency activated carbon wheel (drum type) reflects the company's leading position in the field of adsorption technology and also provides efficient and reliable solutions for industrial waste gas treatment.
